Probes

Utilising our customisable range of probes, we can create a system unique to your requirements.

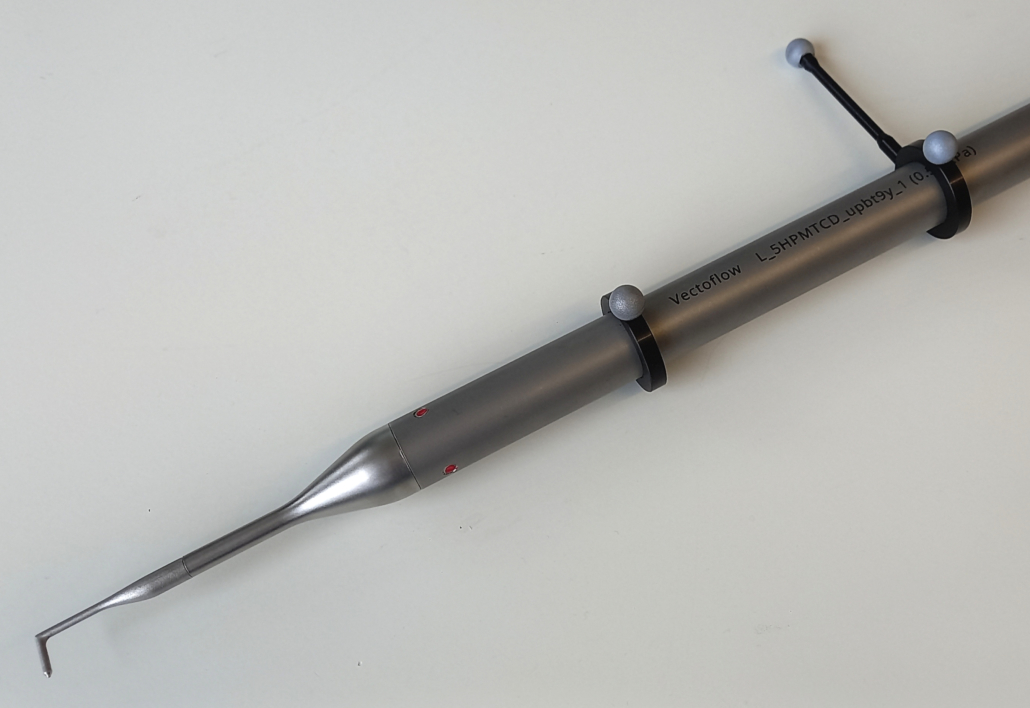

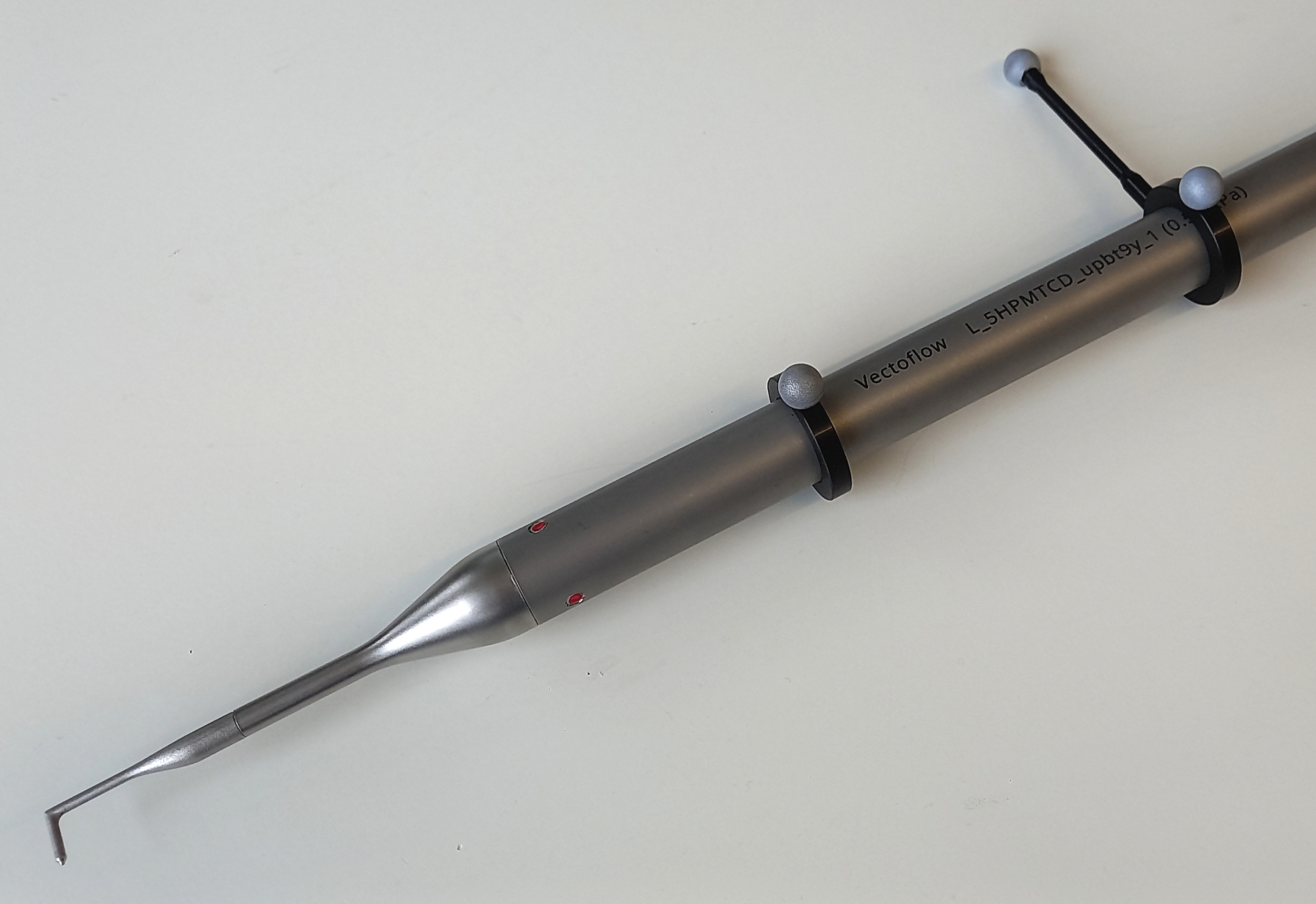

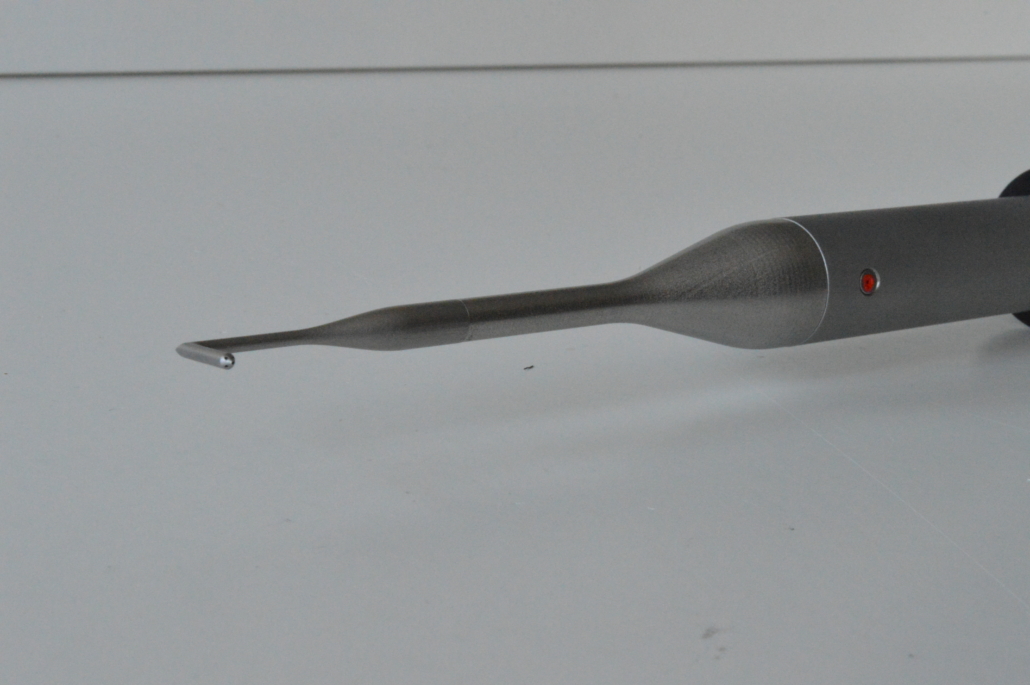

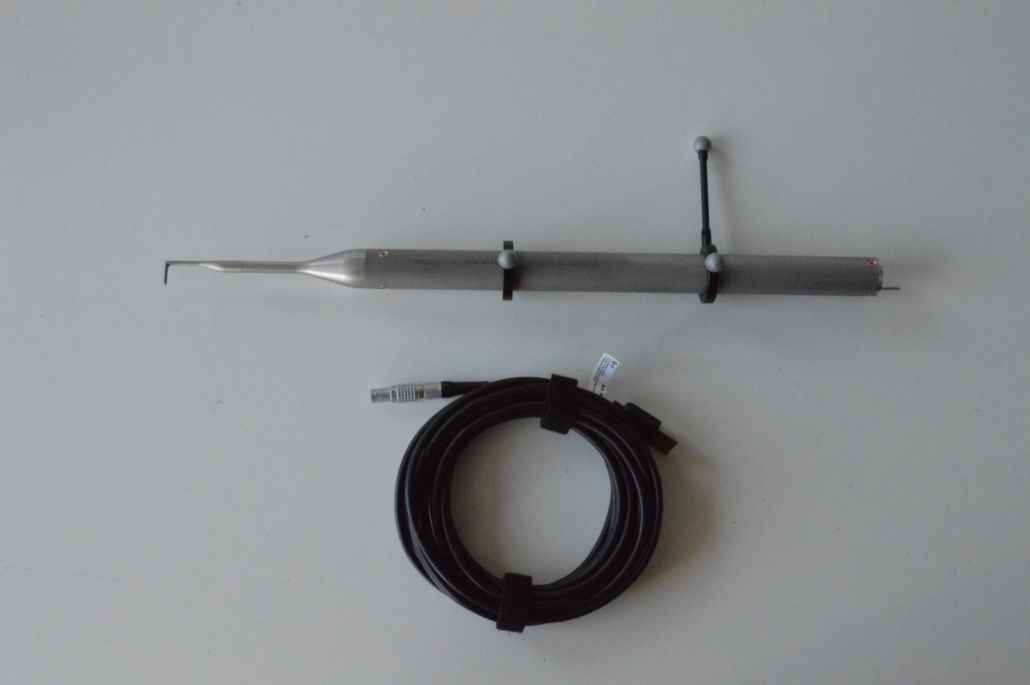

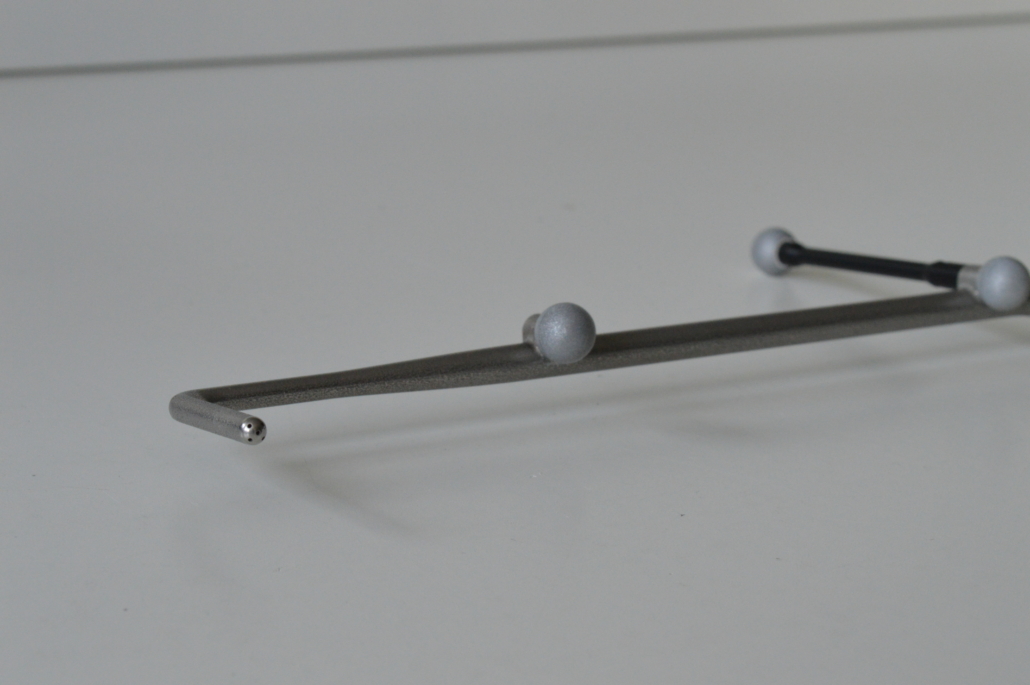

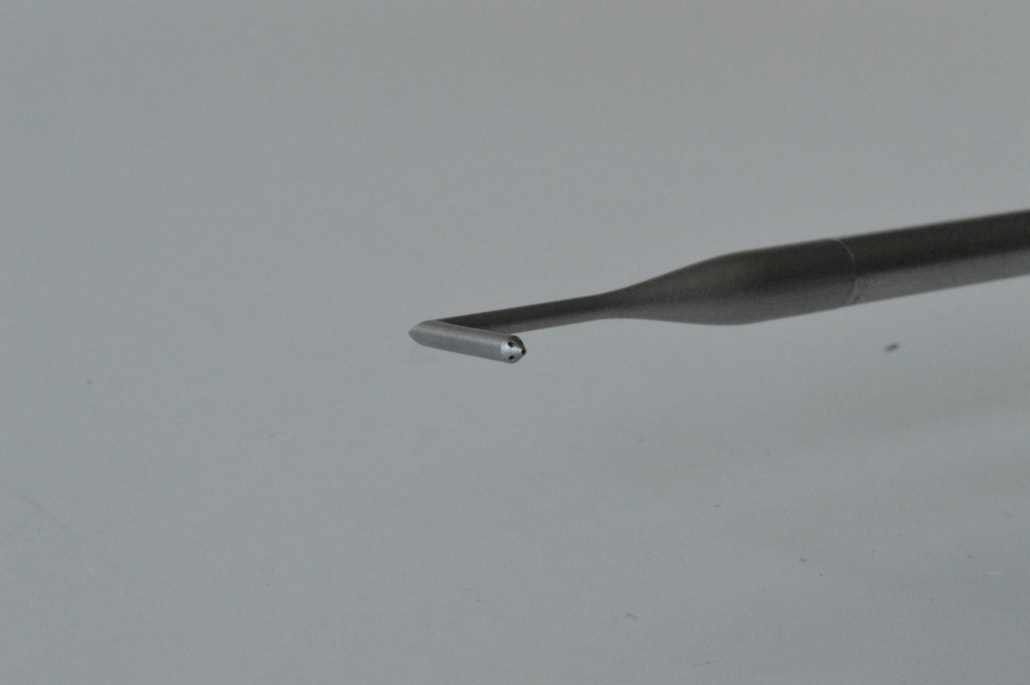

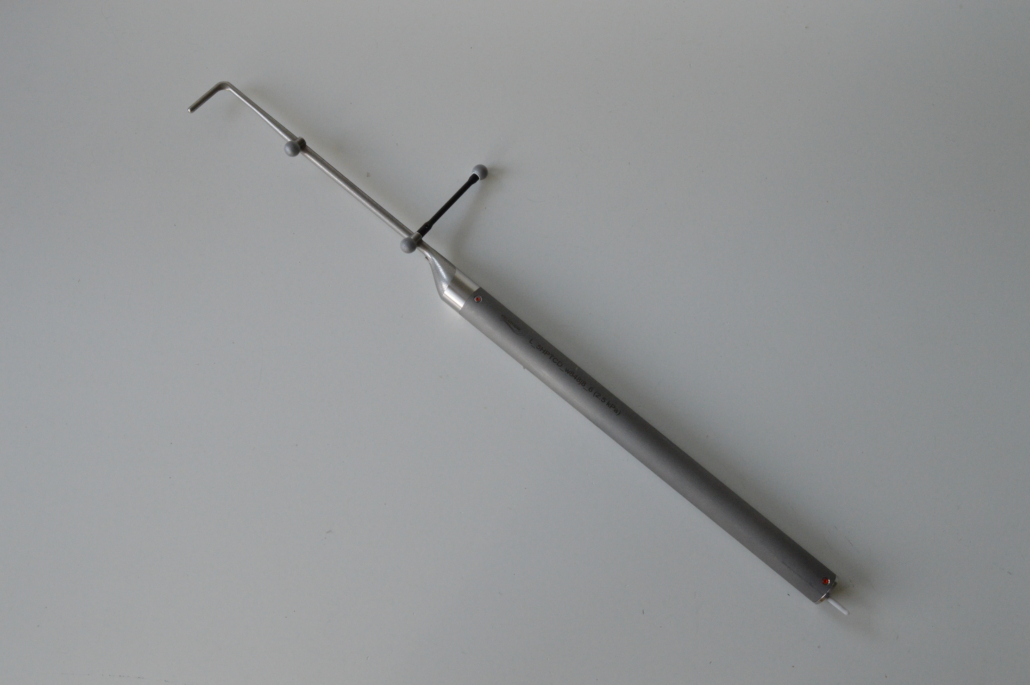

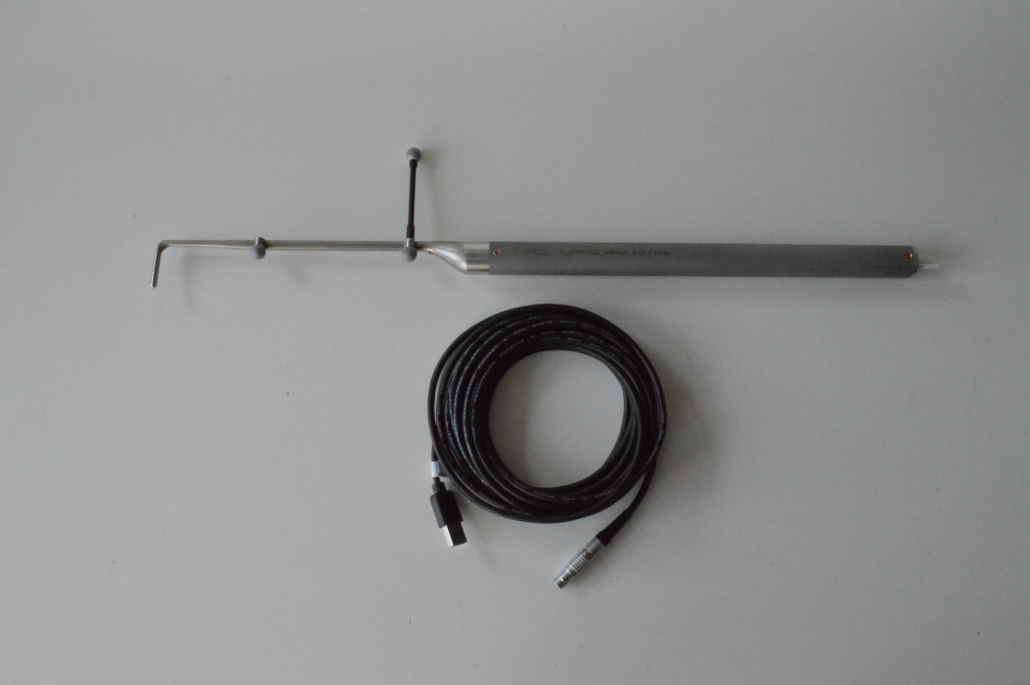

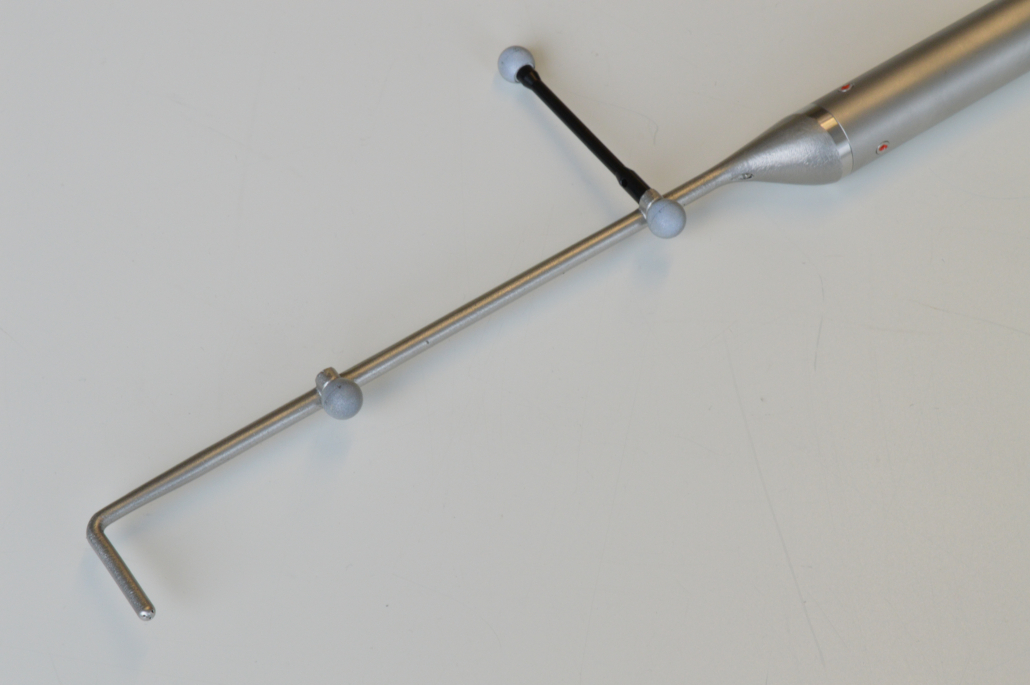

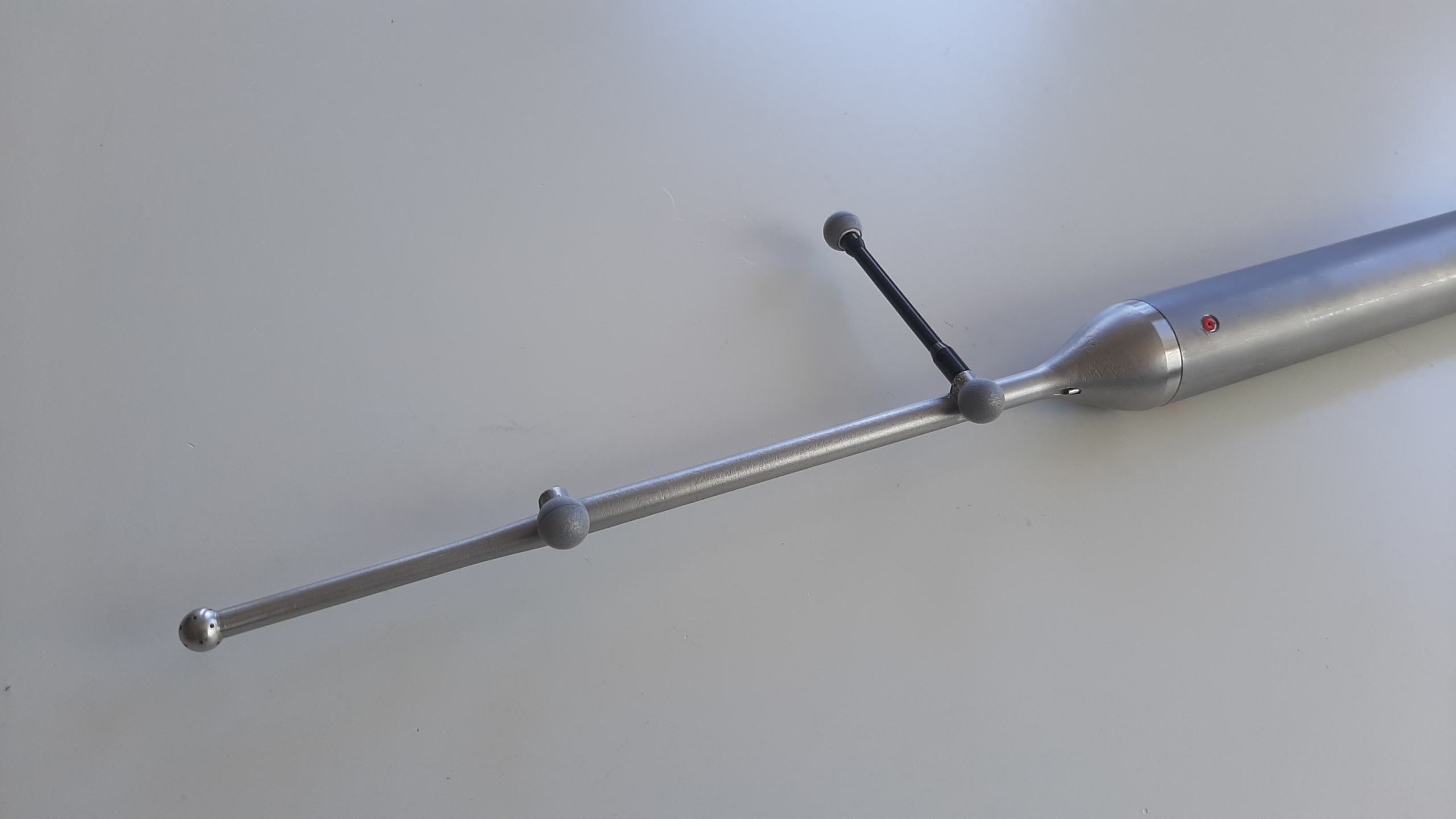

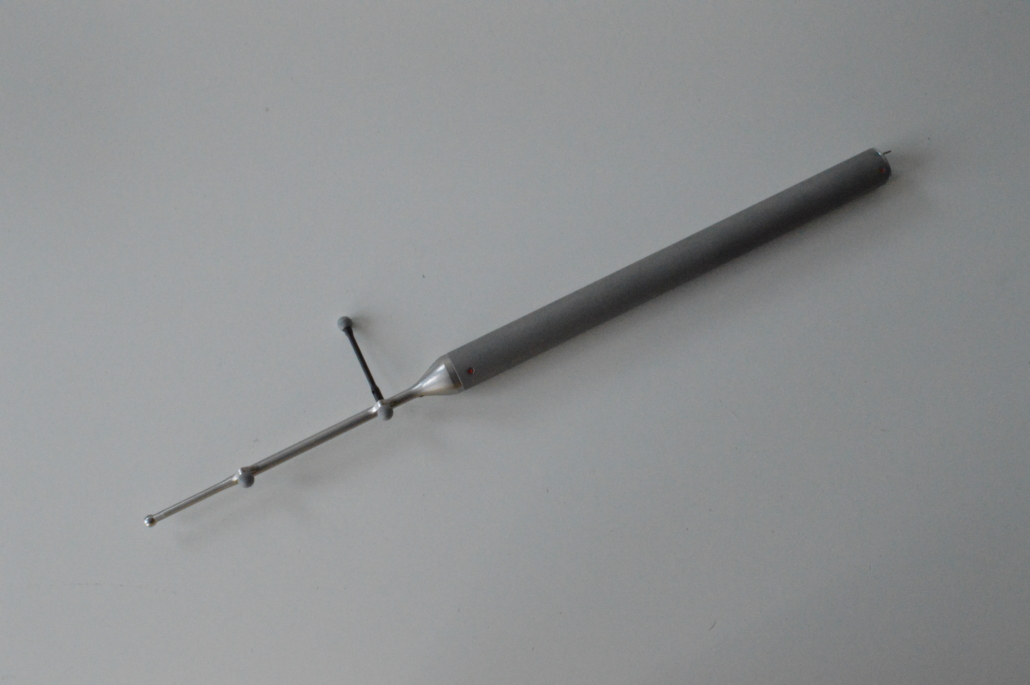

Digital multi-hole probe for wind-tunnel applications and all other use cases with directed flow above 1 m/s
Simultaneous digital output of velocity, pressure density and temperature
4 mm tip diameter
0.5 m/s 0.5° accuracy (see manufacturer’s datasheet for more information, link below)
Spherical tip with 60° acceptance angle
Individually calibrated for selectable velocities
Internal switching of calibrations for wide velocity range
Available for different velocity ranges
Additively manufactured in Stainless Steel
Customized geometries (including tip diameter) on request

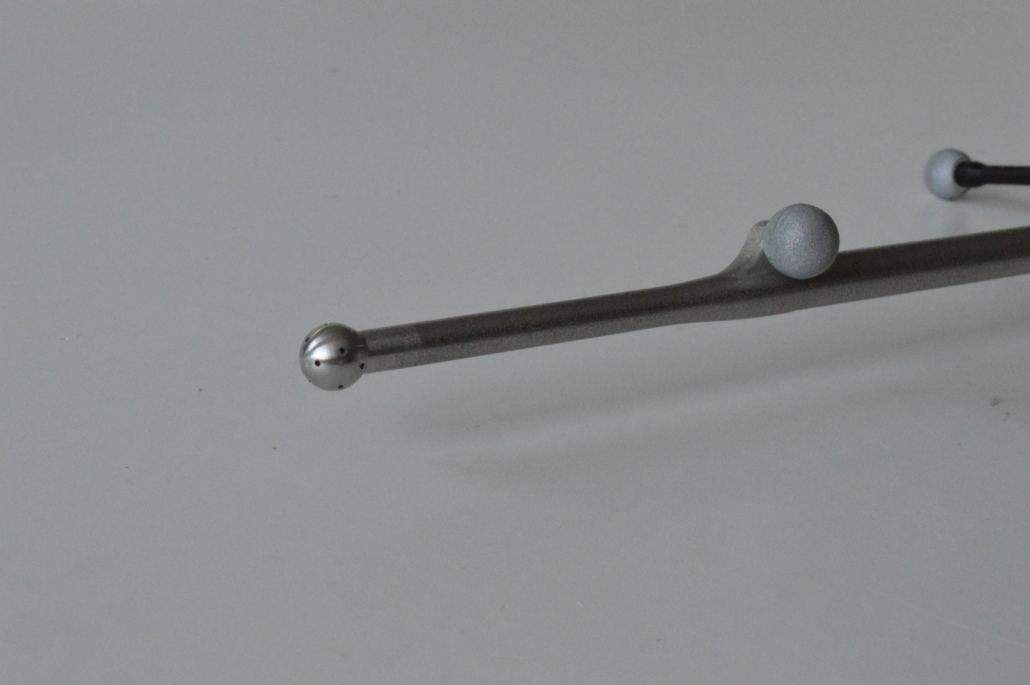

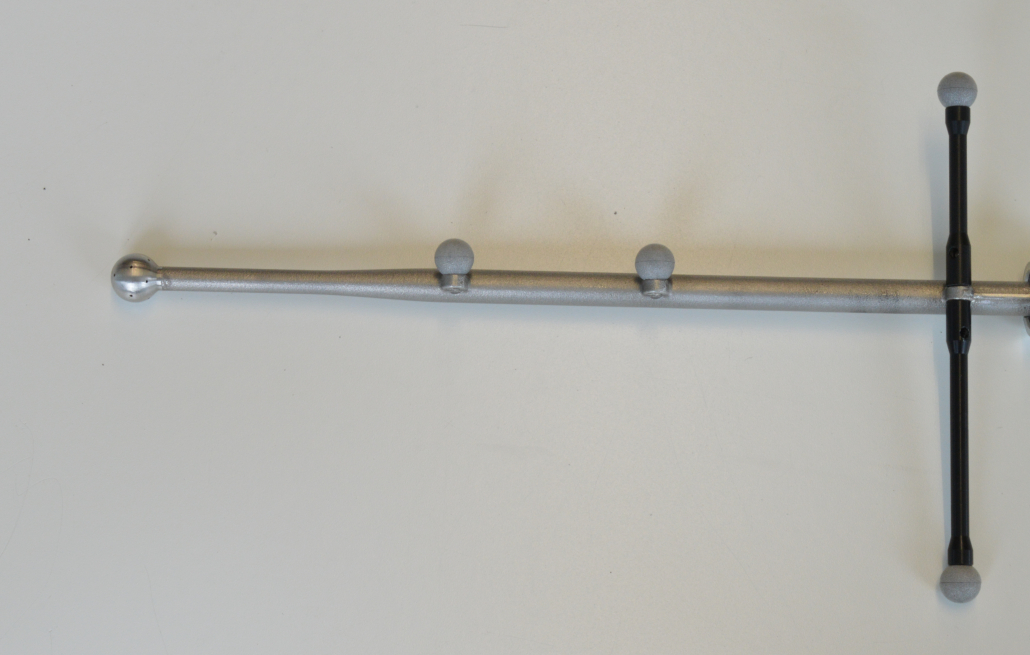

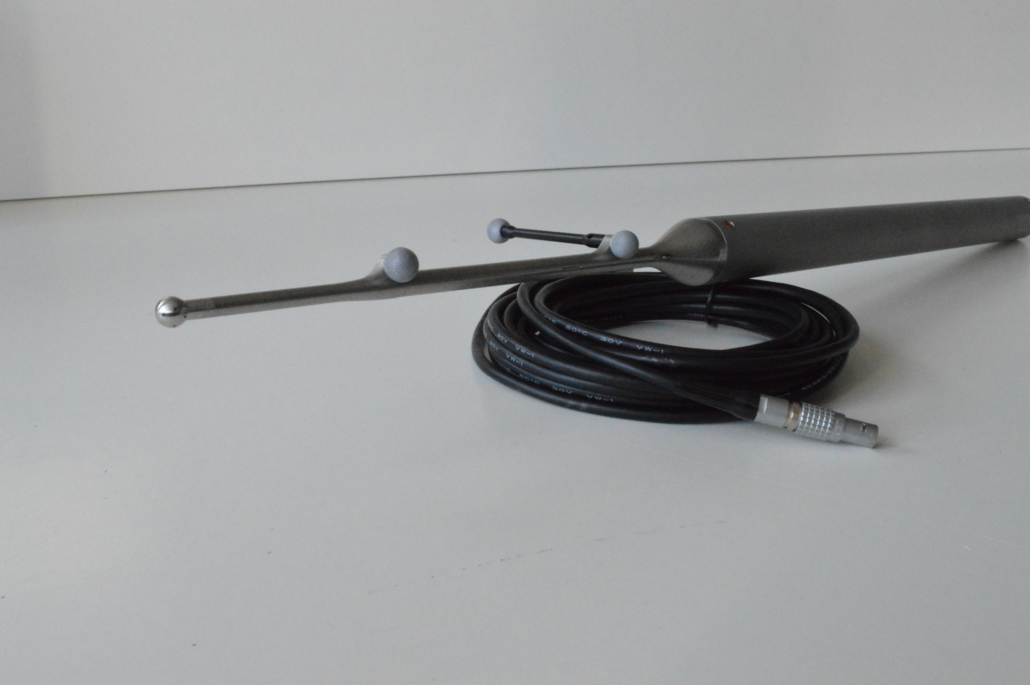

Digital multi-hole probe for bluff body aerodynamics in wind tunnels and all applications with recirculation zones or complex 3D flow structure
Probe for bluff body aerodynamics with recirculation zones
Spherical tip with 320° acceptance angle
7.6 mm tip diameter
1 m/s 1° accuracy (preliminary)
Simultaneous digital output of velocity, pressure density and temperature
Individually calibrated for selectable velocities
Internal switching of calibrations for wide velocity range
Available for different velocity ranges
Additively manufactured in Stainless Steel
Customized probe geometries on request

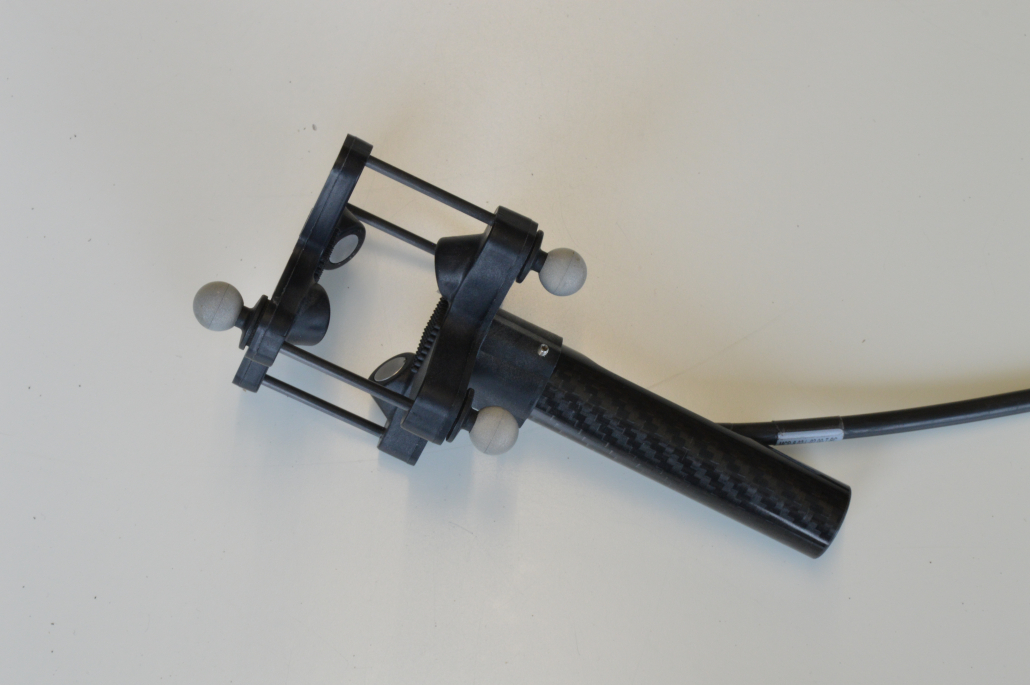

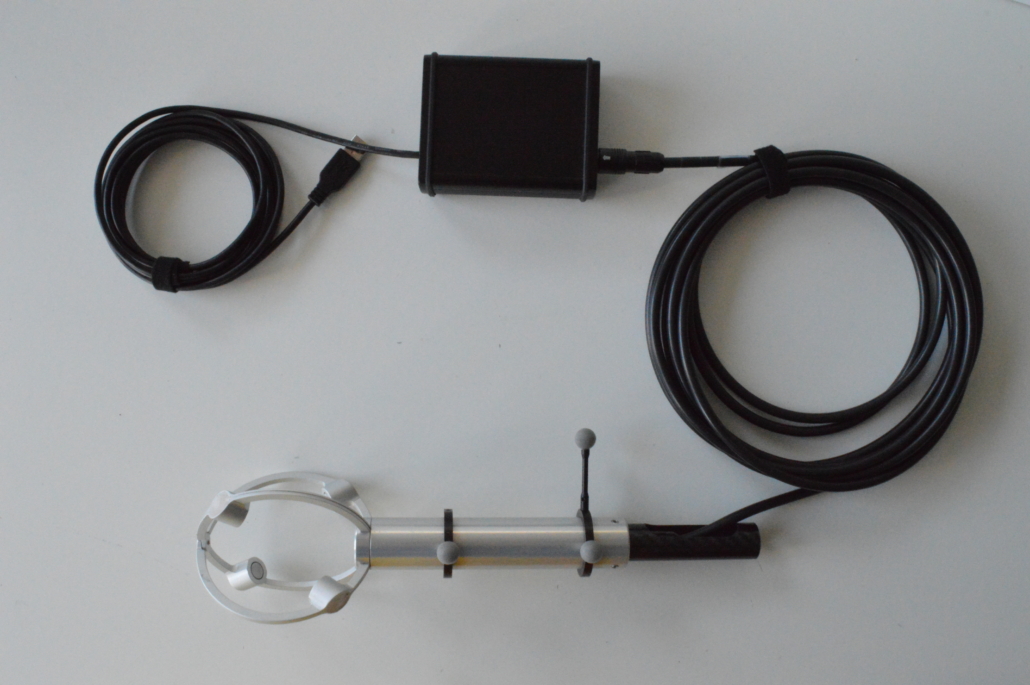

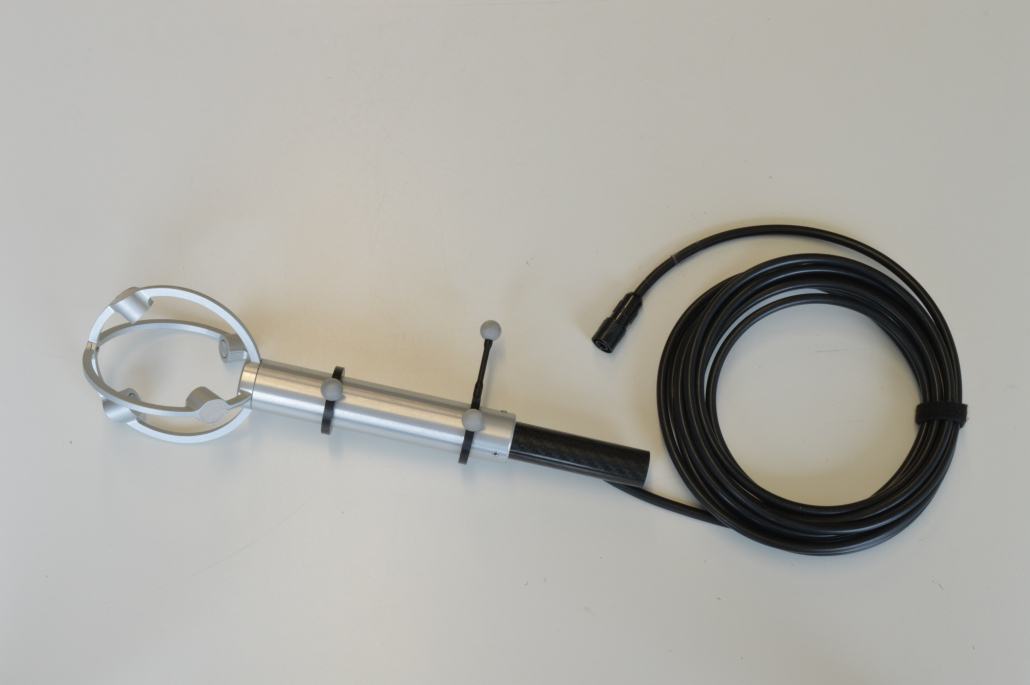

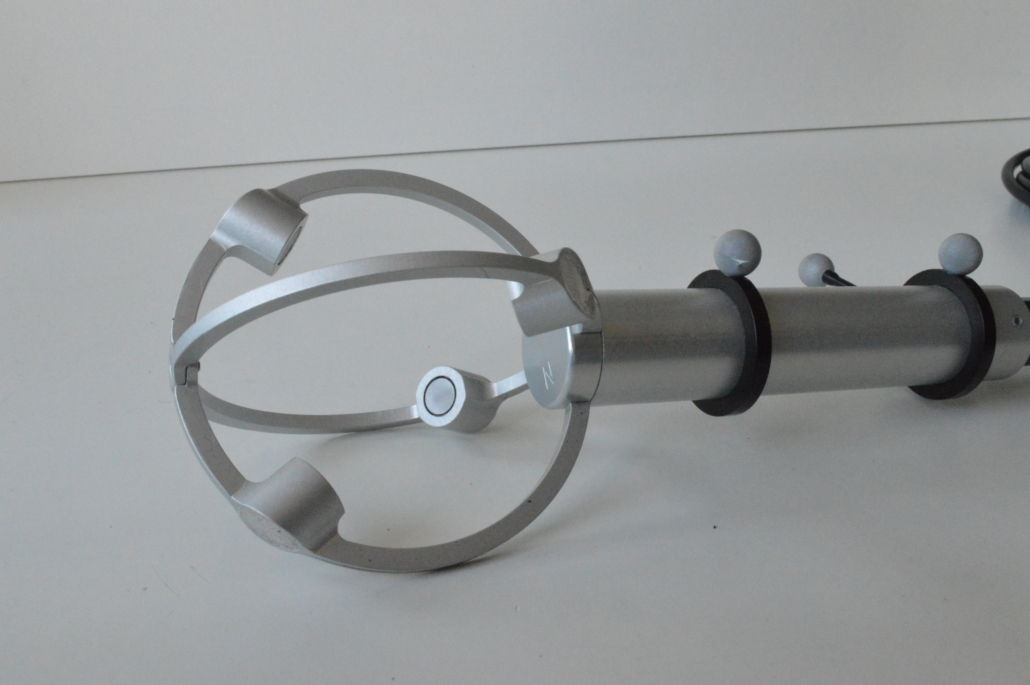

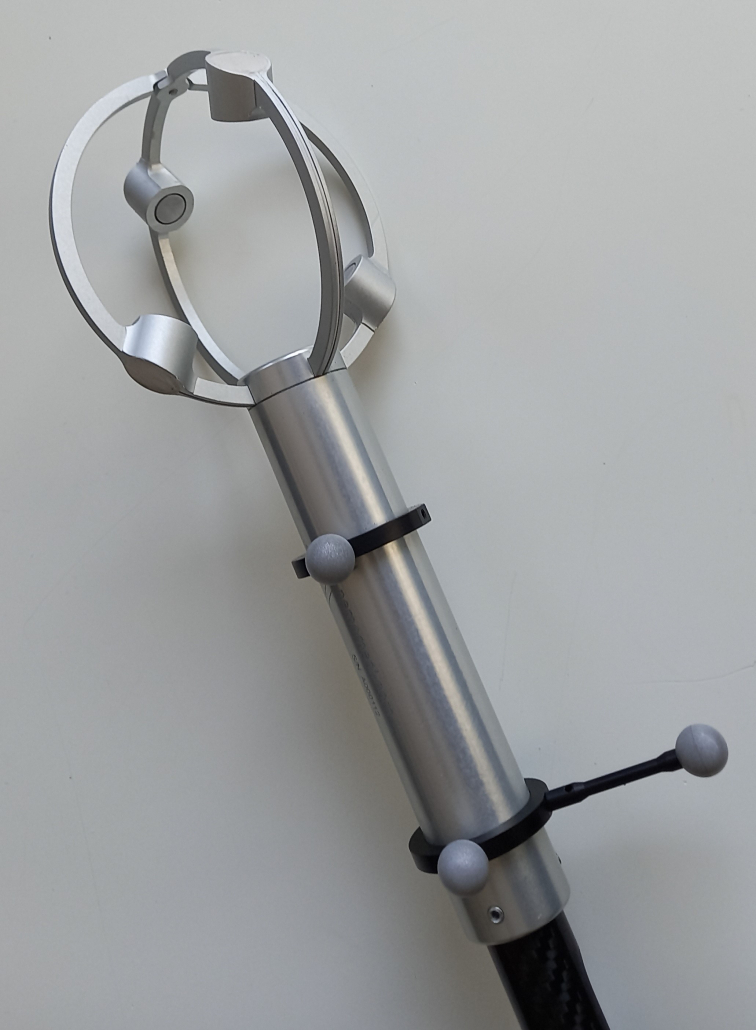

3D ultrasonic flow probe for low-speed applications like climatization, clean rooms and passenger comfort
For low-speed applications like climatization, clean rooms and passenger comfort
Simultaneous measurement of 3D velocity and temperature
Uniquely fast response time for temperature measurement through calculating the speed of sound allowing the mapping of temperature fields
Resolution 0.01 m/s with 0.1 m/s accuracy (according to manufacturer’s datasheet see link below)
Engineered specifically for atmospheric low-speed research
Design dramatically reduces shadow correction while increasing the accuracy of vertical wind measurements
All aluminium construction for durability

Significantly lower price than the Sphere with only a small compromise in acceptance angle
3D ultrasonic flow probe for low-speed applications with directed flow
Simultaneous measurement of 3D velocity and temperature
Compact, lightweight (less than 50 grams), low velocity probe
Provides wind speed, direction, temperature, humidity, pressure, tilt, and compass data

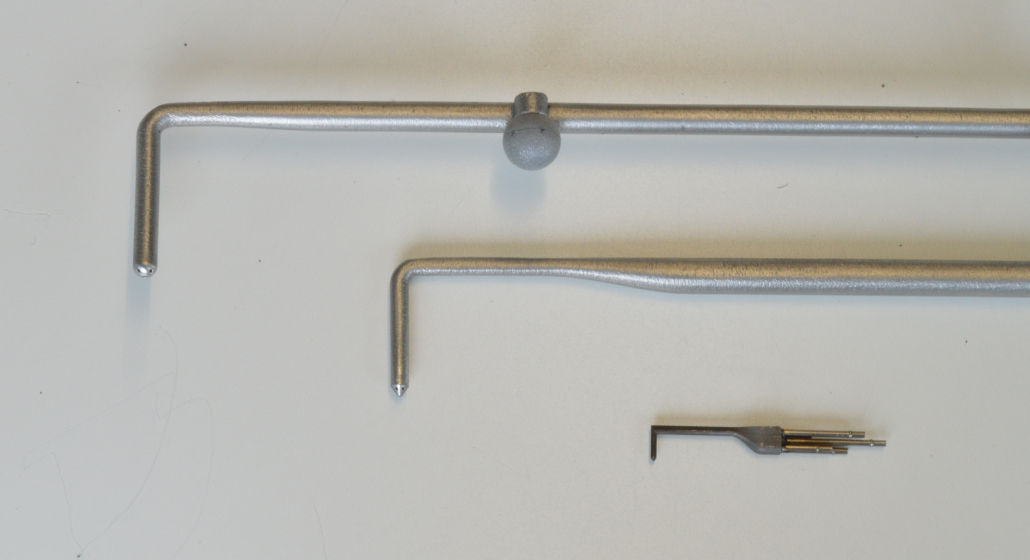

Most of the probes are 3D printed. We can customize the probes to your specific requirements, simply contact us with your specification and we will be in touch
Temperature sensor placement close to the probe tip
Miniature probe tip diameter for small-scale applications
Size (length) and form of the probe

For further information about our range of probes and advice on which probes would suit your application, please:
